Choose an all-metal inductive proximity sensor by defining the real non-contact metal detection task before comparing product families. Record the target or measured object, operating range, motion, mounting geometry, environment, controller interface, and acceptance test. Use the worst permitted condition rather than the easiest sample, and verify every numerical limit against the current data sheet for the exact model. A category description can identify a technology direction, but it cannot prove model-level distance, response, accuracy, ingress protection, temperature limits, wiring, or certification.

Define the Selection Boundary

The primary task is all metal proximity sensor selection for different target metals. This article treats that phrase as one engineering decision, not as a claim that every product in a category fits the application. The boundary includes the actual target or measured object, minimum and maximum operating condition, installation geometry, control interface, environment, consequence of failure, and evidence required for approval.

An all-metal inductive proximity sensor should be evaluated with the actual metal grade and target dimensions. Surrounding metal, mounting construction, target approach, and tolerance stack can change the reliable switching zone. Separate housing material from process compatibility. Verify the sensing face, seals, cable jacket, connector, cleaning chemistry, galvanic contact, and repeated washdown or immersion conditions.

Define: All Metal Inductive Proximity Sensor With Stainless Housing

The phrase all metal inductive proximity sensor with stainless housing defines the product entity by function, not by appearance. For all-metal inductive proximity sensor, confirm the sensing principle, intended target, output expected by the controller, and the boundary between detection and measurement. A product photo or category label cannot establish those capabilities. The entity definition is complete only when an exact model and current document set support the application.

Apply: Metal Face Proximity Switch For Rugged Machinery

Use metal face proximity switch for rugged machinery as an application statement only after the physical task is documented. Identify the target, process sequence, normal and abnormal states, operating speed, installation geometry, contaminants, and consequence of a missed or false event. Separate housing material from process compatibility. Verify the sensing face, seals, cable jacket, connector, cleaning chemistry, galvanic contact, and repeated washdown or immersion conditions. The application fit should be demonstrated on representative hardware; an industry name by itself is not evidence of suitability.

Select: All Metal Proximity Sensor Selection For Different Target Metals

For all metal proximity sensor selection for different target metals, build a selection window with minimum, normal, and maximum conditions. Compare candidates on the same dimensions: target behavior, usable range, mechanical tolerance, response, interface, environment, and required documents. Reject any candidate whose exact-model evidence does not cover a mandatory condition. The remaining candidate still requires a sample test using written pass/fail criteria.

Apply: Washdown Resistant All Metal Inductive Sensor

Use washdown resistant all metal inductive sensor as an application statement only after the physical task is documented. Identify the target, process sequence, normal and abnormal states, operating speed, installation geometry, contaminants, and consequence of a missed or false event. Separate housing material from process compatibility. Verify the sensing face, seals, cable jacket, connector, cleaning chemistry, galvanic contact, and repeated washdown or immersion conditions. The application fit should be demonstrated on representative hardware; an industry name by itself is not evidence of suitability.

Maintain: All Metal Proximity Sensor Service Life In Impact Environments

Manage all metal proximity sensor service life in impact environments with a documented lifecycle plan. Establish commissioning baselines, inspection points, cleaning or adjustment limits, functional-test method, spare identity, change control, and failure-review ownership. Set intervals from duty cycle, environment, consequence of failure, manufacturer instructions, site rules, and observed degradation rather than copying a universal schedule.

When is an all-metal inductive proximity sensor preferable in washdown, abrasion or impact-prone equipment?

Select the all-metal inductive proximity sensor from the complete environmental envelope, including continuous and transient temperature, ingress, contamination, chemicals, pressure, vibration, shock, condensation, icing, sunlight, or electromagnetic exposure as relevant. A material name or enclosure rating does not prove suitability for every medium or cleaning process. Obtain exact-model limits, identify seals and cable boundaries, and reproduce the worst credible condition in a controlled qualification test.

Verification sequence

1. Map continuous and transient environmental conditions.
2. Check every exposed material, seal, cable, and connector.
3. Test the worst combined condition.
4. Define inspection after environmental stress.
5. Include target metal, dimensions, approach, gap, and surrounding metal.

How do sensing distance and correction factors vary with an all-metal proximity sensor and different target metals?

Specify performance as a bounded operating window, not a single headline value. Record minimum, normal, and maximum conditions, add mechanical and process tolerances, and define the acceptance margin. For all-metal inductive proximity sensor, distinguish nominal range from assured operation, resolution from accuracy, response time from total event-capture time, and reference-target data from the real target. Only exact-model values with stated test conditions belong in the design calculation.

Verification sequence

1. Record minimum, normal, and maximum requirements.
2. Separate nominal, assured, repeatability, accuracy, and response terms.
3. Add mechanical and process tolerance.
4. Bind every design value to an exact-model source.
5. Include target metal, dimensions, approach, gap, and surrounding metal.

What inspection and replacement practices extend the service life of a metal-face proximity sensor?

Maintain the all-metal inductive proximity sensor through a risk- and environment-based inspection plan rather than a universal interval. Record contamination, mechanical movement, cable condition, alignment, functional response, diagnostic state, and reset or proof-test results. Frequency should reflect duty cycle, consequence of failure, manufacturer instructions, site rules, and observed degradation. Keep commissioning baselines and change records so deterioration can be distinguished from normal process variation.

Verification sequence

1. Set a commissioning baseline.
2. Define inspection and functional-test records.
3. Adjust interval from risk and observed degradation.
4. Control spares, changes, and end-of-life replacement.
5. Include target metal, dimensions, approach, gap, and surrounding metal.

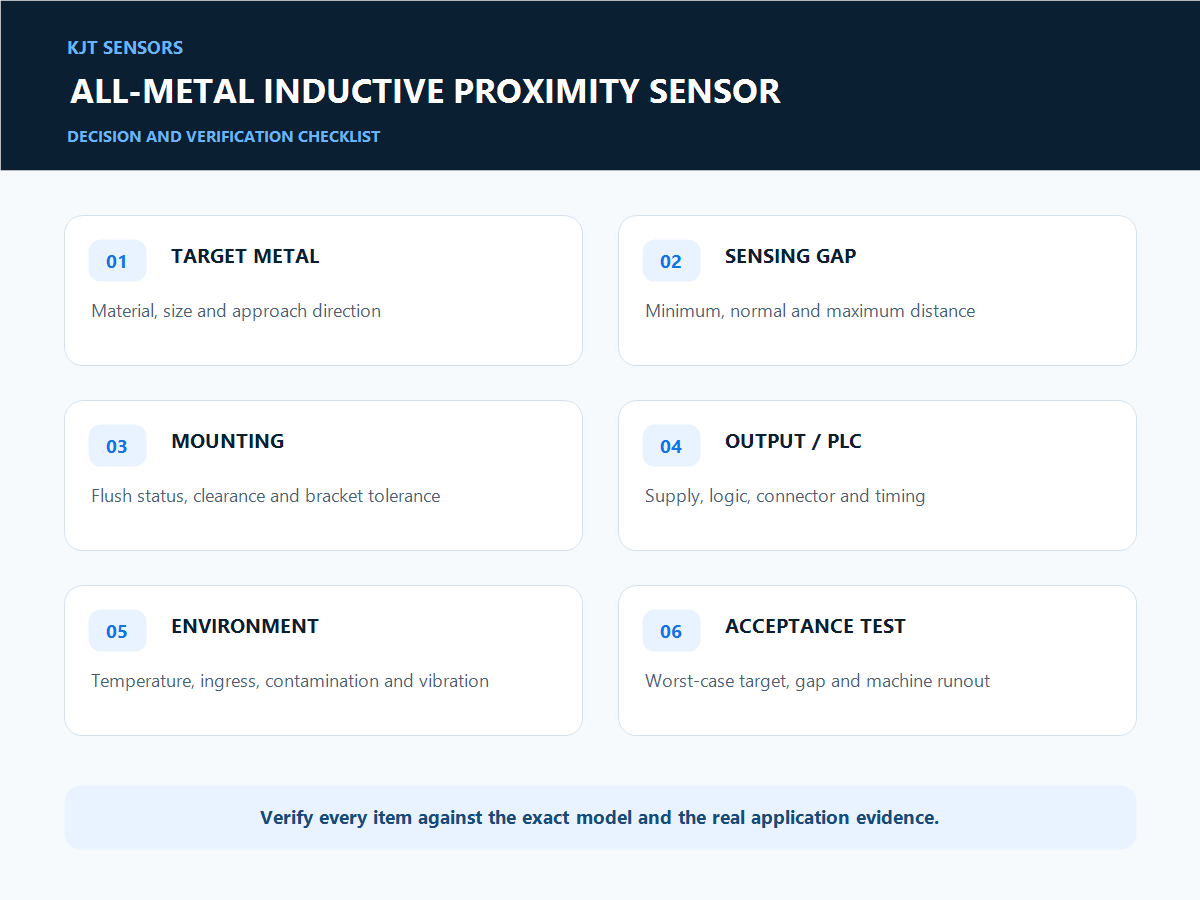

Complete the Article-Specific Decision Matrix

Decision	Rule	Evidence before approval
Metal target	Record material, size, approach direction, and worst-case gap	Target drawing and sample test
Operating window	Record minimum, normal, and maximum conditions with tolerance	Exact-model data sheet and calculation
Mounting	Check space, alignment, clearance, mechanical travel, and service access	Approved drawing and installation review
Electrical or data interface	Match supply, output, logic, timing, connector, and controller	Wiring or protocol document and I/O test
Environment	List temperature, ingress, chemicals, vibration, contamination, and ambient effects	Model limits and representative environmental test
Acceptance	Define pass/fail behavior before ordering	Commissioning record and retained evidence

Do not populate this matrix with assumed values. Use the exact-model data sheet, drawing, wiring or protocol document, certificate where applicable, and a controlled application test.

Validate the Candidate Under Worst-Case Conditions

Test the actual metal grade and smallest target at the maximum permitted gap, then repeat with bracket tolerance, runout, nearby metal, contamination, minimum pulse duration, and supply variation. Record both approach and release behavior where the control logic depends on hysteresis.

Use a controlled sequence:

1. Record model identity and document revision.
2. Photograph or measure the approved installation geometry.
3. Establish a normal baseline at the controller.
4. Exercise each minimum and maximum condition.
5. Introduce one credible disturbance at a time.
6. Record pass, fail, invalid, and recovery behavior.
7. Repeat after final installation if the fixture changed.

Diagnose Failures Without Masking the Cause

Symptom	First checks	Controlled action
No switch	Gap, target metal/size, surrounding metal, supply	Verify the evidence, correct one cause, and repeat the acceptance test
Intermittent	Runout, bracket movement, chips, pulse duration	Verify the evidence, correct one cause, and repeat the acceptance test
Always active	Nearby metal, mounting construction, damaged face	Verify the evidence, correct one cause, and repeat the acceptance test

Stop diagnosis before bypassing guards, emergency circuits, hazardous-area controls, or site isolation procedures. High-consequence behavior requires the responsible engineer.

Prepare the Technical Inquiry

Send KJT Sensors the application function, target or process description, operating window, mounting drawing, speed or timing, environment, supply and controller interface, connector or protocol, destination market, required documents, prototype quantity, and written sample-test criteria. Request the current exact-model data sheet and drawing with the response.

Related KJT Sensors Guides

• How to Choose Inductive Proximity Sensors for Industrial Metal Detection — Review the broader product-family selection framework before narrowing the model.
• How to Select a Corrosion-Resistant Inductive Proximity Sensor — Compare this adjacent selection task to keep the application boundary and evidence requirements distinct.
• How to Choose a High-Temperature Inductive Proximity Sensor for Hot Machinery — Compare this adjacent selection task to keep the application boundary and evidence requirements distinct.

Conclusion

Select all-metal inductive proximity sensor by matching the technology to the real task and then proving the exact model across the full operating boundary. The decision is complete only when mechanical fit, signal behavior, environment, controller response, documentation, and worst-case sample testing agree. Category descriptions support discovery; they do not replace model-level engineering approval.
